New Productivity for Center Drilling Applications.
“Hassle-free” Precision Center Drilling Machines for Bar Stock
Rabbit
Tool’s center drilling machine designed by O. J. Birkestrand draws on almost 35 years of experience to simplify
center drilling of round or hex bar stock. Unique 3 jaw self centering auto locating actuator rods — built right into
the unit — help assure the high precision center drilling you need for confident finish
machining on lathes, all without the hassle and expense of large bore lathes, horizontal bore
mills, or hand layouts.
Models #CDX-1300, -1800, -1900, and -2450 not only deliver the accuracy you need but with productivity and versatility as well. Designed for easy use, these hand-held models weigh about twenty pounds, a fraction of “competitive” lathes. You can use our fully portable drill anywhere in the shop, or even off-site. In every application, its light weight reduces fatigue and increases safety.
You can center drill 3/4" to 13" (or up to 24.50") diameter stock in less than 45 seconds using the same reversible jaws. All the handles and tools needed for setup are built into the machine. Changeover from one diameter to another is equally quick — even for inexperienced operators.
When it comes to reliability, we’ve kept the design sensibly simple and clean. We also use heavy duty 1/2" drill motors to ensure the #CDX-1300, -1800, -1900, and -2450 are producing on the shop floor and not wasting away in the tool crib. To match your non-standard application needs, the masterjaw comes in a choice of materials — aluminum or heat-treated steel. Custom shaped jaws are also available. Contact us for details.
The larger machines of this series, the CDX-2400HD/3600HD and CDX-4800/7200 are larger
versions of this basic design.
If you need features not shown or described, please contact factory.
CDX-Series Machines - Portable Center Drilling Machines for bar stock
Model # | Diameter Capacity | Description | Price |
#CDX-1300 | 1"-13" |
#5/7 Combo (5/8" Major Diameter) center drill standard 1/3 HP, 1 Ph. 110 Volt, 0-550 RPM Electric Drive | $4,245 |
#CDX-1800 | 1"-18" |
#5/7 Combo (5/8" Major Diameter) center drill standard 1/3 HP, 1 Ph. 110 Volt, 0-550 RPM Electric Drive | $4,625 |
#CDX-1900 | 1"-19" |
1.25" Major Diameter center drill standard #16066 1/3 HP, 1 Ph. 110 Volt, 0-550 RPM Electric Drive | $4,995 |
#CDX-2450 | 1"-24.5" |
1.25" Major Diameter center drill standard #16066 1.2 KW, 1 Ph. 110 Volt, 0-120 RPM Electric Drive | $5,495 |
#CDX-2400HD | 4"-24" |
2.50 Major Diameter center drill standard 1.2 KW, 1 Ph. 110 Volt, 0-120 RPM Electric Drive | $10,375 |
#CDX-3600HD | 4"-36" |
2.50 Major Diameter center drill standard 1.2 KW, 1 Ph. 110 Volt, 0-120 RPM Electric Drive | $10,975 |
#CDX-4800 | 8"-48" |
2.25" Major Diameter center drill standard; Tool change to 3.5" Major Diameter 1.2 KW, 1 Ph. 110 Volt, 0-120 RPM Electric Drive | $12,450 |
#CDX-7200 | 8"-72" |
2.25" Major Diameter center drill standard; Tool change to 3.5" Major Diameter 1.2 KW, 1 Ph. 110 Volt, 0-120 RPM Electric Drive | $13,450 |

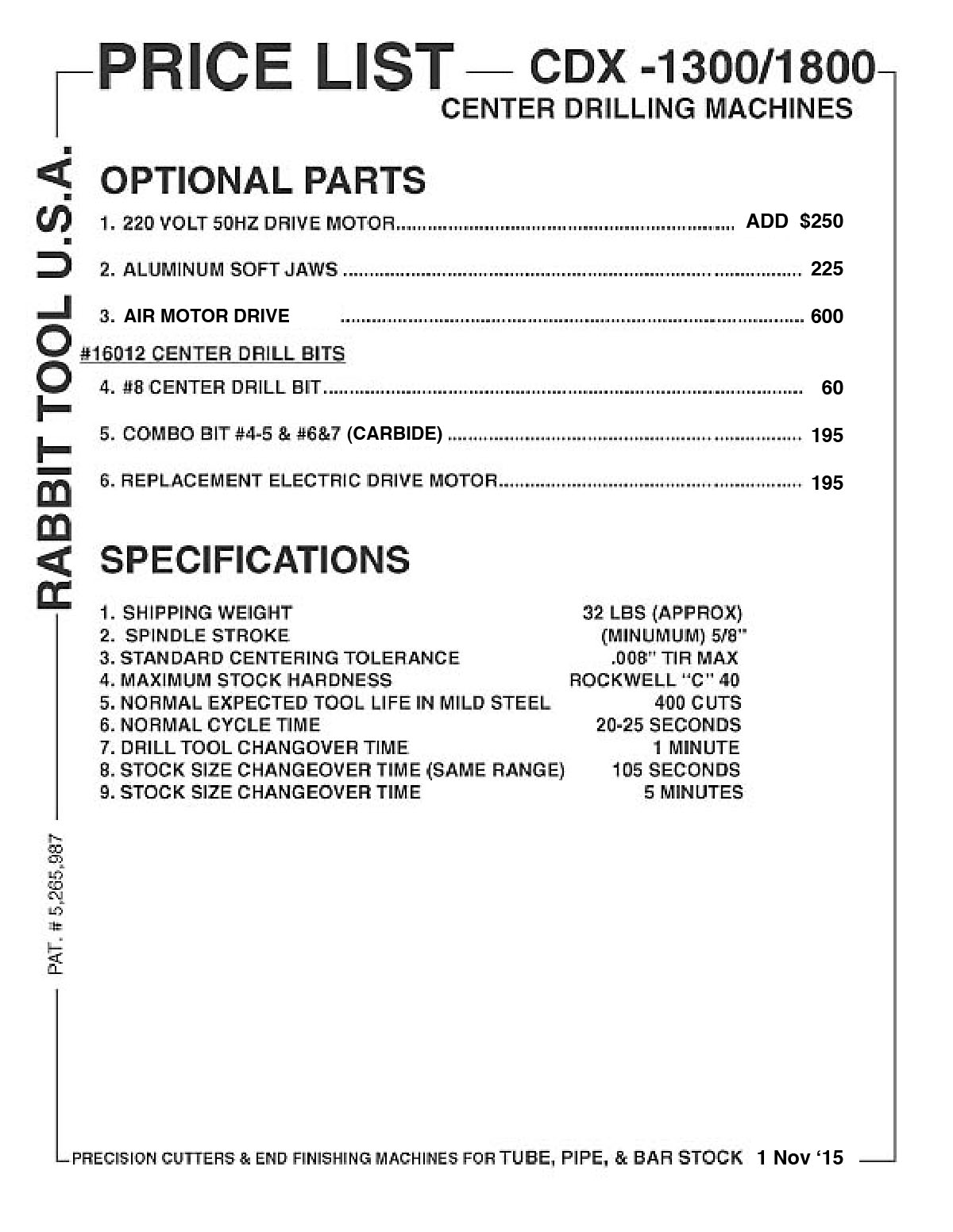

Replaceable Center Drills
For Models #CDX-1300/1800 (#16012-x) (3/8"-16 Shank) | Price | |
Center Drill Sizes #4-7 Combo (5/8" Major Diameter) P/N 16012-7 | $50 | |
Center Drill Size #8 (3/4" Major Diameter) P/N 16012-8 | $70 | |
Center Drill for Harder Materials #7 (T-15) | $60 | |
Center Drill for Harder Materials #8 (T-15) |
$85 | |
For Models #CDX-1900/2450 (#16066) (1/2"-13 Shank) | ||
Center Drill Size (1.25" Major Diameter) P/N 16066 | $210 | |
Center Drill Size for Harder Materials (T-15) (1.25" Major Diameter) P/N 16066 | $240 | |
For models #CDX-2400HD/3600HD | ||
Center Drill Size 1.25" Major Diameter P/N 16065 (3/4"-10) | $210 | |
Center Drill Size 1.5" Major Diameter P/N 16065-1 (3/4"-10) | $325 | |
Center Drill Size 2.50" Major Diameter for HD models (1"-8) | $445 | |
For Models #CDX-4800/7200 | ||
Center Drill Size 2.25" Major Diameter P/N 16115 Consult Factory | ||
Spare Chamfer Tool to 3.00" Major Diameter P/N 16125 Consult Factory | ||
Spare Chamfer Tool to 3.50" Major Diameter P/N 16130 Consult Factory |
Options, Accessories & Spare Parts
2.4 KW Electric Drive Motor for #CDX-4800/7200 Models
Consult Factory
220 Volt Electric Drives for all models Consult Factory
1 JUN '23
Rabbit Tool U.S.A., Inc
105 - 9th Street
Rock Island, IL 61201
TEL/FAX
(309) 793-4375
