New Productivity for Center Drilling Applications.

Rabbit Tool USA CDX-1300-1800 Center Drilling Machine

Rabbit Tool’s center drilling machine draws on almost 35 years of experience to simplify center drilling of round or hex bar stock. Unique jaw locating actuator rods — built right into the unit — help assure the high precision center drilling you need for confident finish machining on lathes,  all without the hassle and expense of large bore lathes, horizontal bore mills, or hand layouts.

The Model #CDX-1300 (and stretched version 1800) not only delivers the accuracy you need but productivity and versatility as well. Designed for easy use, this hand-held model weighs about twenty pounds, a fraction of “competitive” lathes. You can use our fully portable drill anywhere in the shop, or even off-site. In every application, its light weight reduces fatigue and increases safety.

You can center drill 3/4" to 13" (or 18") diameter stock in less than 45 seconds using the same reversible jaws. All the handles and tools needed for setup are built into the machine. Changeover from one diameter to another is equally quick — from one diameter to another is equally quick — even for inexperienced operators.

When it comes to reliability, we’ve kept the design sensibly simple and clean. We also use heavy duty 1/2" drill motors to ensure the #CDX-1300/1800 is producing on the shop floor and not wasting away in the tool crib. To match your non-standard application needs, the masterjaw comes in a choice of materials — aluminum or heat-treated steel. Custom bores are also available. Contact us for details.

The larger machines of this series, the CDX-2400/3600 and CDX-4800/7200 are larger versions of this basic design.

If you need features not shown or described, please contact factory.

  • Precision center drilling of rough bar stock in 45 seconds or less, with repeatability.
  • Lightweight and portable — it goes where the work is.
  • Fast setup and changeover for increased throughput.
  • Eliminates the need for large bore lathes, horizontal boring mills, or expensive hand layouts.
  • Electric drive standard, air and hydraulic optional.
  • Designed and manufactured in the USA.
CDX Replacement Drillbits

CDX-Series

Portable Center Drilling Machines for bar stock

Machines

#CDX-1300 CENTER DRILLING MACHINE (1"-13" Diameter Capacity)

  • #7 (5/8" Major Diameter) center drill standard
  • 1/3 HP, 1 Ph. 110 Volt, 0-550 RPM Electric Drive
  • $4,245

#CDX-1800 CENTER DRILLING MACHINE (1"-18" Diameter Capacity)

  • #7 (5/8" Major Diameter) center drill standard
  • 1/3 HP, 1 Ph. 110 Volt, 0-550 RPM Electric Drive
  • $4,625

#CDX-2400 CENTER DRILLING MACHINE (4"-24" Diameter Capacity)

  • 1.25 Major Diameter center drill standard
  • 1.2 KW, 1 Ph. 110 Volt, 0-350 RPM Electric Drive
  • $8,125

#CDX-2400HD CENTER DRILLING MACHINE (4"-24" Diameter Capacity)

  • 2.50 Major Diameter center drill standard
  • 1.2 KW, 1 Ph. 110 Volt, 0-120 RPM Electric Drive
  • $10,375

#CDX-3600 CENTER DRILLING MACHINE (4"-36" Diameter Capacity)

  • 1.25 Major Diameter center drill standard
  • 1.2 KW, 1 Ph. 110 Volt, 0-350 RPM Electric Drive
  • $8,750

#CDX-3600HD CENTER DRILLING MACHINE (4"-36" Diameter Capacity)

  • 2.50 Major Diameter center drill standard
  • 1.2 KW, 1 Ph. 110 Volt, 0-120 RPM Electric Drive
  • $13,125

#CDX-4800 CENTER DRILLING MACHINE (8"-48" Diameter Capacity)

  • 2.25" Major Diameter center drill standard; Tool change to 3.5" Major Diameter
  • 1.2 KW, 1 Ph. 110 Volt, 0-120 RPM Electric Drive
  • $11,450

#CDX-7200 CENTER DRILLING MACHINE (8"-72" Diameter Capacity)

  • 2.25" Major Diameter center drill standard; Tool change to 3.5" Major Diameter
  • 1.2 KW, 1Ph. 110 Volt, 0-120 RPM Electric Drive
  • $12,450

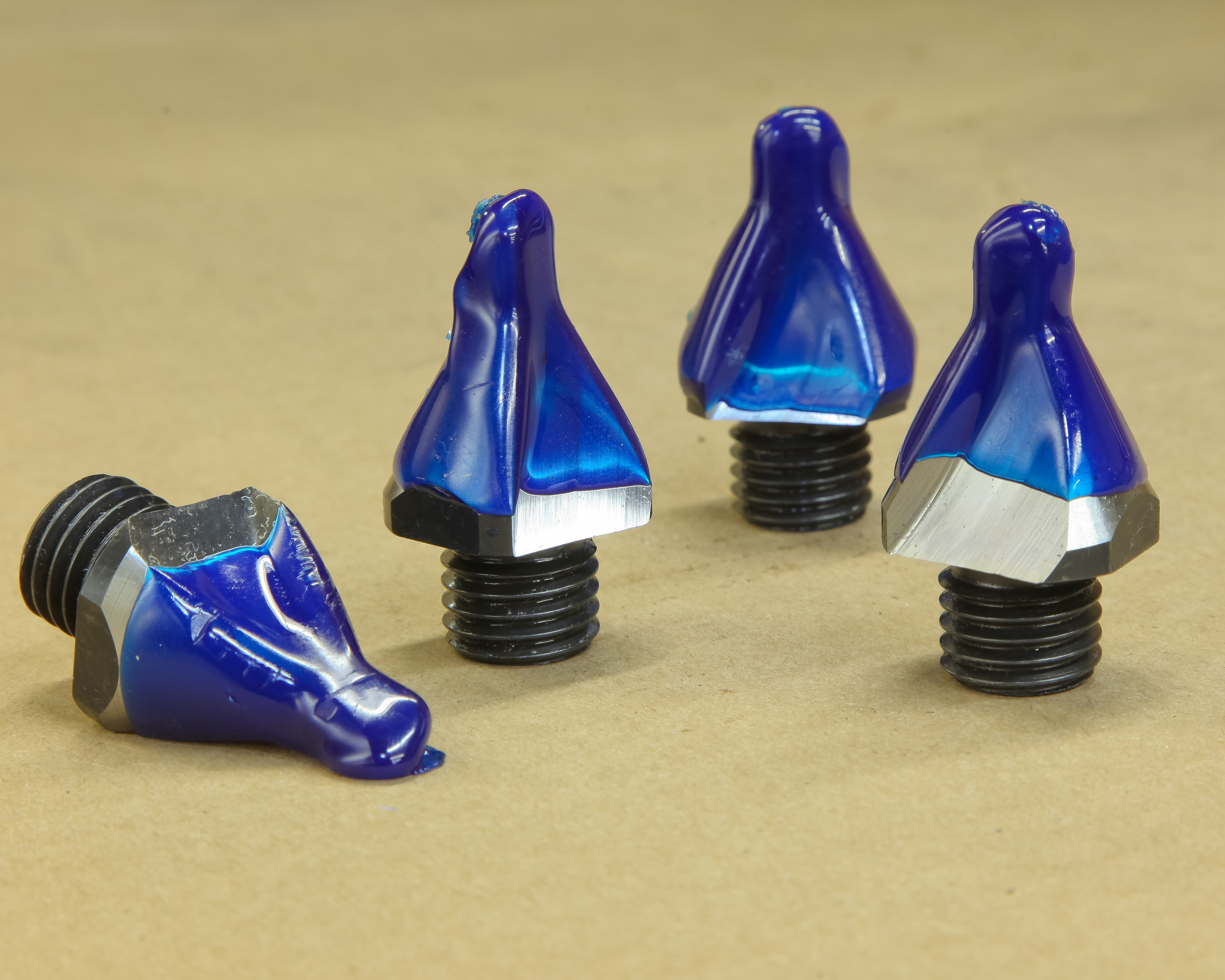

Replaceable Center Drills

For models #CDX-1300/1800 (#16012-x)

  1. Center Drill Sizes #4-7 Combo (5/8" Major Diameter) P/N 16012-7
  2. $35
  3. Center Drill Size #8 (3/4" Major Diameter) P/N 16012-8
  4. $70
  5. Center Drill for Harder Materials #7 (T-15)
  6. $55
  7. Center Drill for Harder Materials #8 (T-15)
  1. $85

For models #CDX-2400/3600

  1. Center Drill Size 1.25" Major Diameter P/N 16065
  2. $175
  3. Center Drill Size 2.50" Major Diameter for HD models
  4. $225

FOR MODELS #CDX-4800/7200

  1. Center Drill Size 2.25" Major Diameter P/N 16115
  2. Consult Factory
  3. Spare Chamfer Tool to 3.00" Major Diameter P/N 16125
  4. Consult Factory
  5. Spare Chamfer Tool to 3.50" Major Diameter P/N 16130
  6. Consult Factory

Options, Accessories & Spare Parts

  1. 2.4 KW Electric Drive Motor for #CDX-4800/7200 Models
  2. Consult Factory
  3. 220 Volt Electric Drives for all models
  4. Consult Factory
